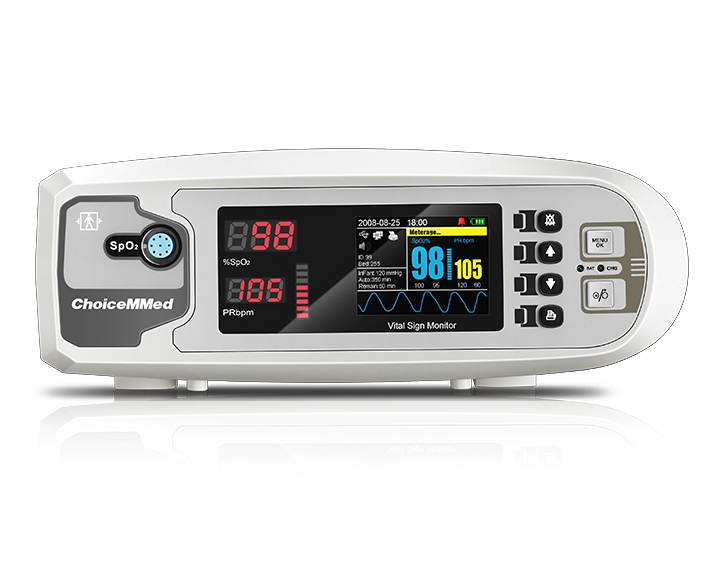

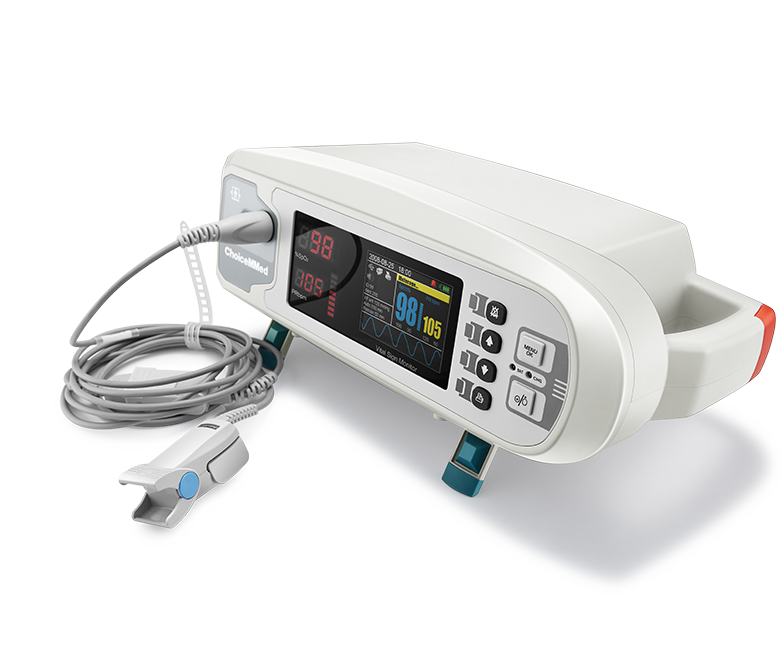

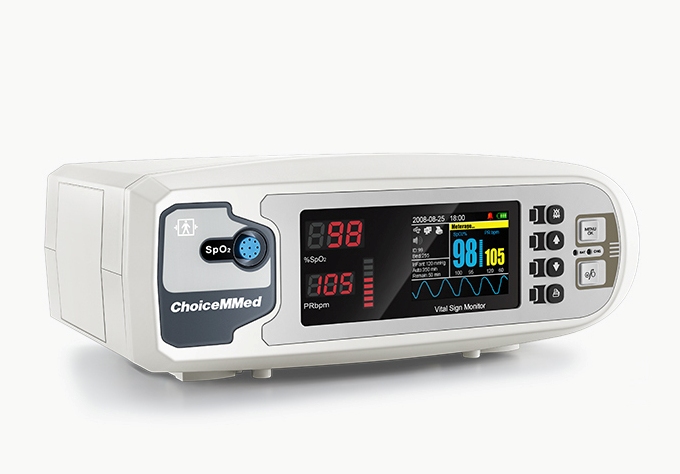

Tri-Parameter VSM
MD2000A

- Vehicle inverter: Unlimited using time for ambulance without the AC power
- 72 hour data storage, 99 ID set available, measurement record and trend review
- Bright, high resolution LCD screen displays the waveform as well as the SpO₂, PI* and PR readings
- Printer facility for printing reports immediately
- Patient measuring data transfer via USB to a PC




Tri-Parameter VSM
MD2000A





Patient Range
Adult and pediatrics
SpO₂
Measurement range: 70%-100%
Pulse Rate
Measurement range: 30-250bpm
PI*
Measurement range: 0.2%-20%
Data Transmission
USB
Wired LAN (Optional)
Alarm
SpO₂, PR, probe off, finger out, low voltage
Modes: Visible & 3-level audible alarms, error code
Storage
Patient ID: 1-99
Data records: up to 72 hours
Appearance
Dimension: 296mm *175mm *96mm mm (±1mm)
Weight: 1.5±0.1kg
Display
Type: 2.8” LCD & LED screen
Parameters: SpO₂, PI*, PR, pulse bar, waveform
Power
Battery Type: Built-in rechargeable battery
AC Adaptor: AC 100-230v, 50/60 Hz (±3 Hz)
