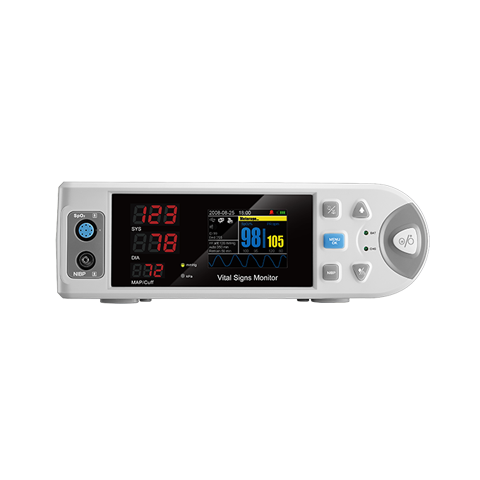

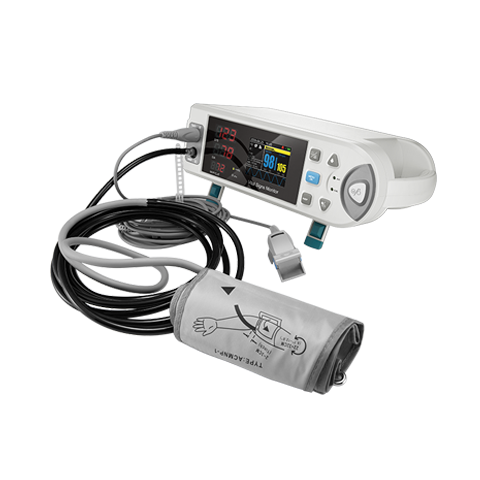

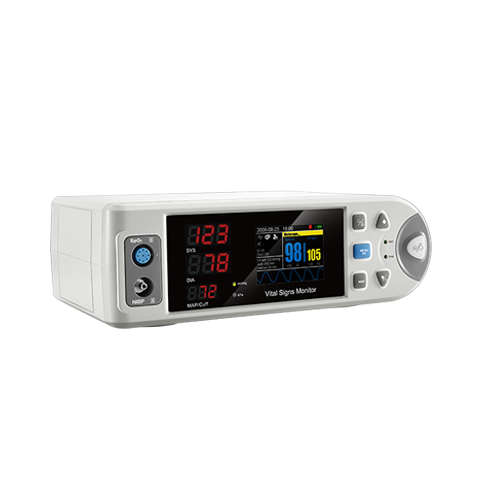

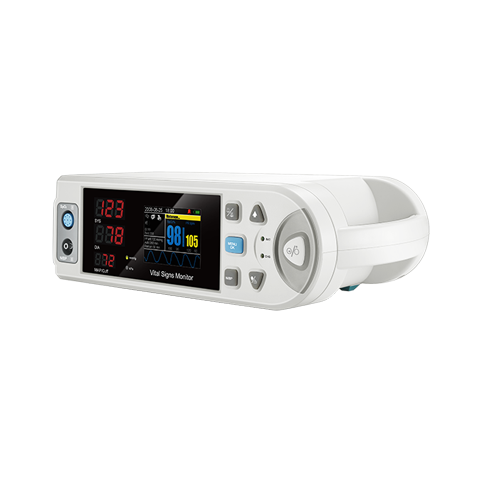

Four-Parameter VSM
MD2000B

- NIBP button on the front panel, directly measuring the NIBP with pushing the button
- Vehicle inverter: Unlimited using time for ambulance without the AC power
- 72 hour data storage, 99 ID available, measurement record and trend review
- Bright, high resolution LCD screen displays the waveform as well as the SpO₂, PI* and PR readings
- Separate bright LEDs display for systolic, diastolic and mean Blood Pressure readings
- Printer facility for printing reports immediately
- Patient measuring data transfer via USB to a PC




Four-Parameter VSM
MD2000B





Patient Range
Adult and pediatrics
SpO₂
Measurement range: 70%-100%
Pulse Rate
Measurement range: 30-250bpm
PI*
Measurement range: 0.2%-20%
NIBP
Method: Oscillometric
Operation Modes: Manual/Automatic/STAT
Measurement Unit: mmHg/kPa selectable
Measurement Types: Systolic, diastolic and mean
Data transmission
USB
Wired LAN (Optional)
Alarm
NIBP (SYS, DIA, MAP), SpO₂, PR, probe off, finger out, low voltage
Modes: Visible & 3-level audible alarms, error code
Storage
Patient ID: 1-99
Data Records: up to 72 hours
Appearance
Dimension: 296mm *175mm *96mm mm (±1mm)
Weight: 1.5±0.1kg
Display
Type: 2.8” LCD & LED screen
Parameters
NIBP(SYS, DIA, MAP) ,SpO₂, PI, PR, pulse bar, waveform
