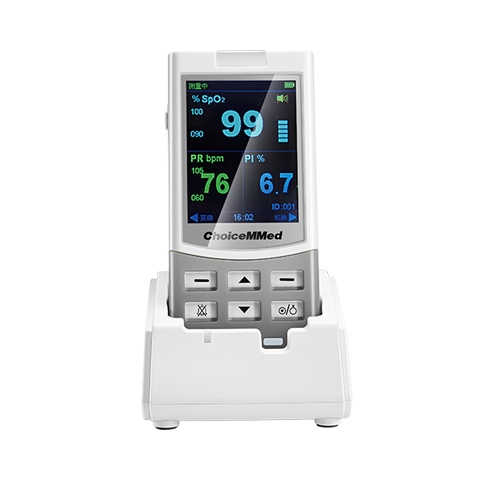

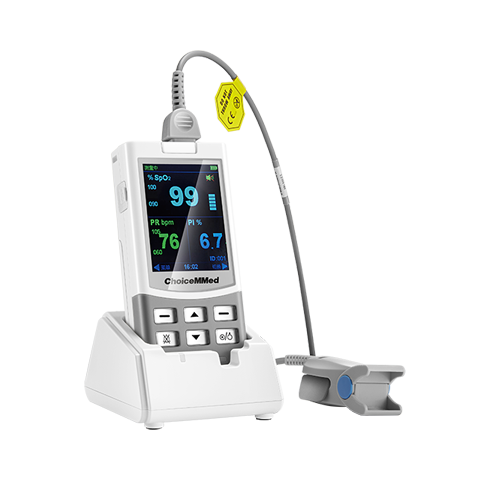

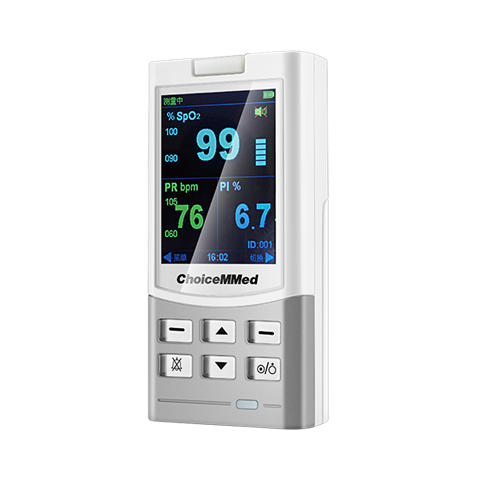

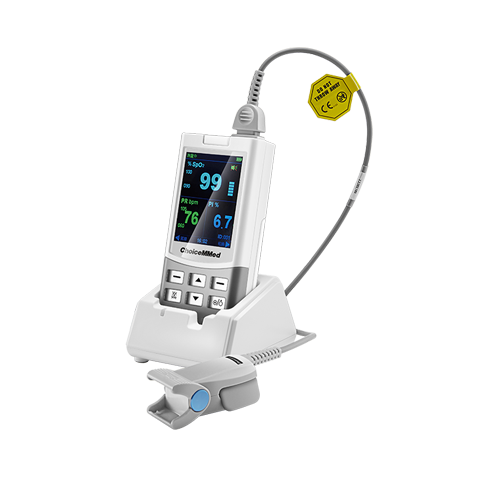

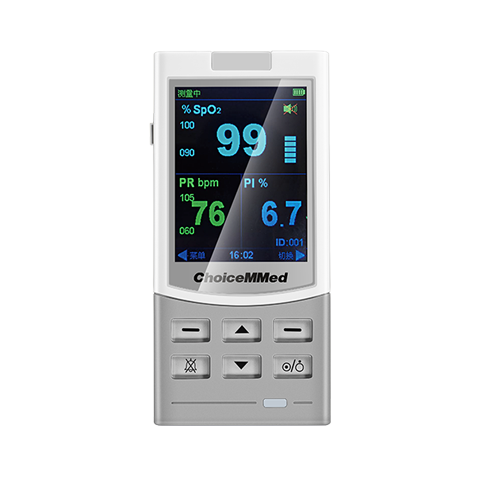

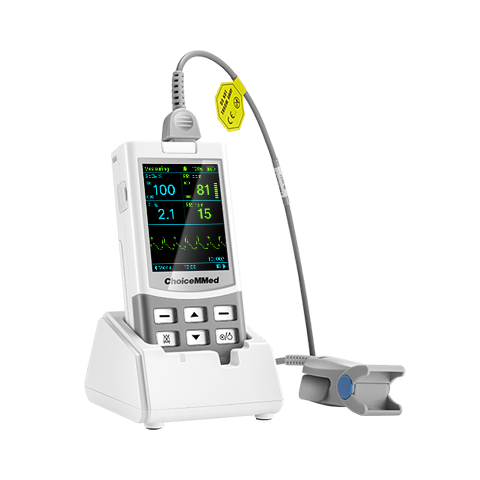

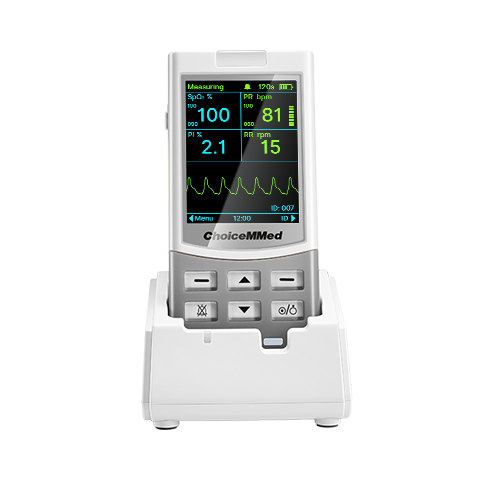

Handheld Pulse Oximeter
MD300M

- High resolution 2.8” TFT screen displays SpO₂, PR, PI, waveform and pulse bar
- Adjustable audible and visual alarms; battery indicator
- Adjustable backlight and voice
- 127 ID setup; 72-hour data storage and review
- MedView software for data analysis
- USB or bluetooth 2.0 (optional) for data transmission
- Muti-language(Menu):English, French, German, Spanish, Italian, Japanese, Russian and Chinese




Handheld Pulse Oximeter
MD300M





Patient Range
Adult, adolescent, child and infant
SpO₂
Measurement range:70% - 100%
Pulse Rate
Measurement range:30 - 250bpm
Perfusion Index
Measurement range: 0.1%-20%
Display
Type : 2.8” color TFT
Parameters
SpO₂, PR, PI*, pulse bar, waveform
Brightness
Adjustable 1 - 7 level
Alarm
SpO₂, PR, Probe off, finger out, battery indicator
Modes
Audio & visual alarm, information
Data management
Transmission method: USB data cable
Power supply
3 AA alkaline batteries /Ni-MH batteries or adapter
Battery operation time
Work for about 10 hours continuously
AC adapter
Input Voltage: AC 100 - 240V
Input Frequency: 50Hz - 60Hz
Input Frequency: 50Hz - 60Hz
Input Frequency: 50Hz - 60Hz
Output Voltage: DC 5V±5%
Output Current: 2A MAX
Dimension
126mm(L) * 60mm(W) *30mm(H)±3mm
Weight
195g (excluding the batteries)
